Spindle
Type Hydro Extractor for Cone / Cheese Drying
|
|
|
|

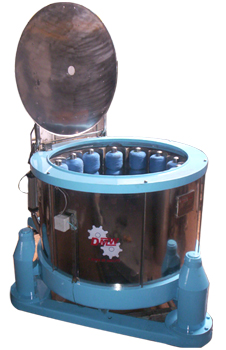

3
Point Spindle Type
|

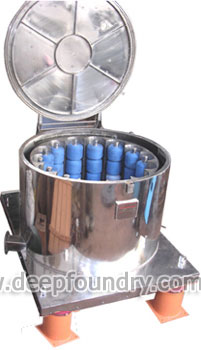

4
Point Spindle Type
|
DMW
Hydro Extractors are the heavy duty Centrifuge with robust construction,
provide rapid acceleration and smooth running.
MAIN BASKET:
The Main Basket is specially designed to accommodate Cheese / Cone
Packages to avoid damage to the yarn. The spindles are made of seamless
SS 304 in 5mm thickness.
OUTER BODY:
Totally made of SS 304 in 12 / 14 Gauge according to size of the
machine
TOP LID:
Fully opened SS 304 with Hydraulic Power Pack system.
DRIVE SYSTEM:
Verticle mounted TEFC AC Electric Motor with Fluid Coupling for
progressive starting of the machine.
CONTROL PANEL:
Complete Digital Panel Control Box with safety interlocks.
MOISTURE CONTENTS:
Between 0% - 55% on Bone Dry weight required for R/F Dryer.
DRYING CYCLE:
12 to 20 Minutes which vary according to the count and nature of
the yarn.
TECHNICAL SPECIFICATIONS:
| Model |
Unit |
DMW-24 |
DMW-36 |
DMW-48 |
DMW-60 |
Basket Diameter
|
mm |
610 |
915 |
1220 |
1524 |
| Basket Height |
mm |
420 |
420 |
615 |
615 & 815 |
| No. of Spindles |
Nos. |
8 |
12 |
14 |
18 |
| Package Dia X Height |
mm |
180 X 170 |
180 X 170 |
180 X 170 |
180 X 170 |
| Baskt Speed |
rpm |
1400 |
1100 |
1000 |
850 |
| Motor Power |
KW / HP |
5 / 7½ |
7½ / 10 |
9.3 / 12.5 |
15 / 20 |
| Total weight |
Ton |
1.2 |
1.7 |
2.7 |
3.7 |
Please Note :
The number of spindle can vary according to the diameter of the
cone / cheese. We reserve the right to alter size, weight and
design features
|
