DMW

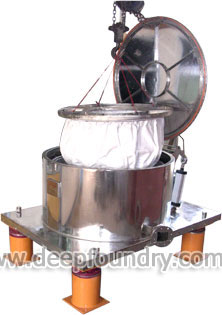

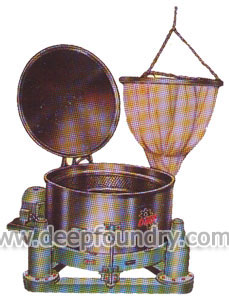

Centrifuges are the heavy duty Centrifuge with robust construction;
provide rapid acceleration and smooth running. These are the
instant Top Discharge Centrifuge in which the filter bag is
fitted in the basket having easy detachable top ring. The filter
bag along with the basket top is lifted by the monorail hoist
or chain pulley and moved to the desired place. The cake is
discharged through the center of the bag.
Main
Features:
- Easy
& quick loading/unloading.
-
Less manual labour involved.
-
High production per batch
-
Scrapping of cake not required.
-
Uniform distribution of slurry.
-
No manual contact with cake.
-

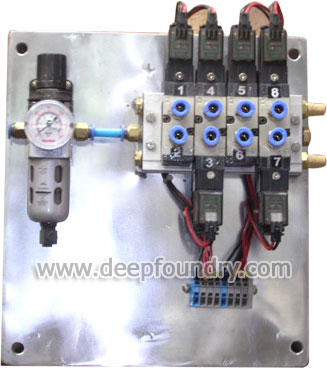

Fast & Easy opening of the Top Lid by Hydraulic / Pneumatic.
-
Cake handling loss negligible and no rest cake heel left
behind.
-
Most suitable for hard Cake.
-
Uniform washing of slurry / Cake
-
Maximum use of Basket Capacity.
Advantages
of 4 Point Mounting
- No
need for elaborate foundation / civil work
- Can
be easily relocated.
- Almost
negligible maintenance cost for suspension / mounting system
- Level
of vibration much lower.
- Can
be easily mounted on upper floors.
Technical
Specifications for Bag Lifting Top Discharge Cetrifuge.
| Model |
Unit |
DL-24 |
DL-36 |
DL-48 |
DL-60 |
Basket Diameter
|
mm |
610 |
915 |
1219 |
1524 |
Basket Height
|
mm |
355 |
457 |
510 |
620 |
| Working capacity under Lip |
Liters |
70 |
160 |
260 |
525 |
| Basket Load |
Kgs |
50 |
100 |
250 |
550 |
| Max. Basket Revolution |
rpm |
1100 |
950 |
850 |
750 |
| Centrifugal Force |
G. Units |
491 |
511 |
552 |
546 |
| Motor Power |
KW / HP |
3.7 / 5 |
5.5 / 7½ |
8 / 10 |
15 / 20 |
| Total weight (3 Point) |
Ton |
0.95 |
1.7 |
2.7 |
3.7 |
|
(4 Point) |
Ton |
1.25 |
2.0 |
3.5 |
4.5 |
PLEASE
NOTE:
1. The above capcities are for Chemicals which are in Cake
/ Slurry or Crystalline form. We have no data regarding
capacities in case of difference fabric, yarn
and chemicals which will vary according to the density of
the material.
2. We reserve the right to alter size, weight and design features.
|
