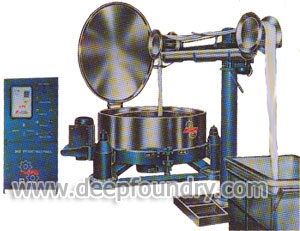

Fully
Automatic Hydro Extractor with Fabric Loading & Unloading Device
DMW
introduces their latest ‘MASTER CENTRIFUGE’ with state of the art
technology and advanced features for the utmost convenience of the
Textile Processing House. This Machine with AC Inverter Drive and
Fabric Loading / Un loading Device has innumerable advantages over
the traditional Centrifuges.
Main Features:
-
Very smooth & noiseless starting of the machine due to the
progressive acceleration provided by the Ac Inverter Drive.
Hence no need for Centrifugal Clutch Pulley, no wear and tear,
and no maintenance.
-
Power Saving upto 35% due to low starting and running current.
-
Speed of the basket can be varied even during running mode. Hence
suitable for different fabric qualities.
-
Auto off after the completion of Hydro-Extraction time, followed
by the Auto-Dynamic braking of the revolving basket.
-
Audio / Visual alarm to alert the operator, indicating the completion
of the process.
-
Panel Control is provided with Safety Interlocks.
-
Easy & Smooth opening of Top Lid by Hydraulic Power Pack.
Spherical bearing used in suspension columns gives trouble
free running.
Technical Specifications for Micro Processor Controlled Hydro
Extractor with Fabric Loading & Unloading Device:
| Model |
Unit |
DMW-48 |
DMW-60 |
| Basket Diameter |
mm |
1220 |
1525 |
| Basket Height |
mm |
457 |
570 |
| Loading Capacity |
Kgs. |
100 |
250 |
| Motor Power (Machine) |
KW / HP |
1.5 / 10 |
15 / 20 |
| Motor Power (Loading Device) |
KW / HP |
0.75 / 2 |
0.75 / 2 |
| Speed (Variable) |
RPM |
300 to 1000 |
250 to 850 |
| Total Weight |
Kgs. |
3000 |
4150 |
Please
note:
-
The above capacities are for woolen Blankets. We have no data
regarding capacities in case of difference fabric, yarn and chemicals,
which will vary according to the density of the material.
- We
reserve the right to alter size, weight and design features without
prior intimation
|
