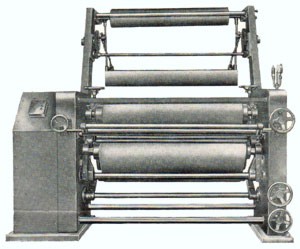

Felt
Calender
 |
 |
| |

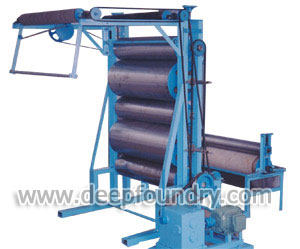

Baby
Calender (5 Bowl)
|
Frame
Cast Iron Frames of fabricated from M.S. Plate M.S. Section with
cross section strengthening bars.
Main Cyclinder:
Hollow Pipe made of 12 mm thick M.S. PLATE OF 20 Dia and 62 width
Property ground and well polished moving on ball bearing with steam
inlet and outlet device.
Pressing Rolls:
One is placed at top and one placed in front, made of M.Steel 6½
Dia and 62 width well polished and moving on ball bearing.
Felt Centgering & Tightening:
One Felt Centring Roller and one Felt tension adjuster are provided,
which are moving on ball bearings.
Technical Data:
| Working Width |
60 (1525 mm) or 72 (1829 mm) |
| Electric Load |
3 H.P. or 5 HP ( 1440 RPM) |
| Steam Pressure |
25 to 50 PSI |
| Dimensions |
Height 8 8x width 9xLength 9
(2645 x 2745 x 2745 mm) |
| Weight |
3000 Kgs. |
| Production |
8000 to 12000 meters |
|
